Alle 70 Produkte der Produktfamilie
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

25mm, f/16 Objektiv mit Festbrennweite der Ci-Serie

25mm Focal Length

25mm Focal Length

Lager #85-337
€295,00
Stk. 1
€295,00
Mengenrabatte
Angebotsanfrage


Brennweite FL (mm):
25.00
Max. Sensorgröße:
2/3"

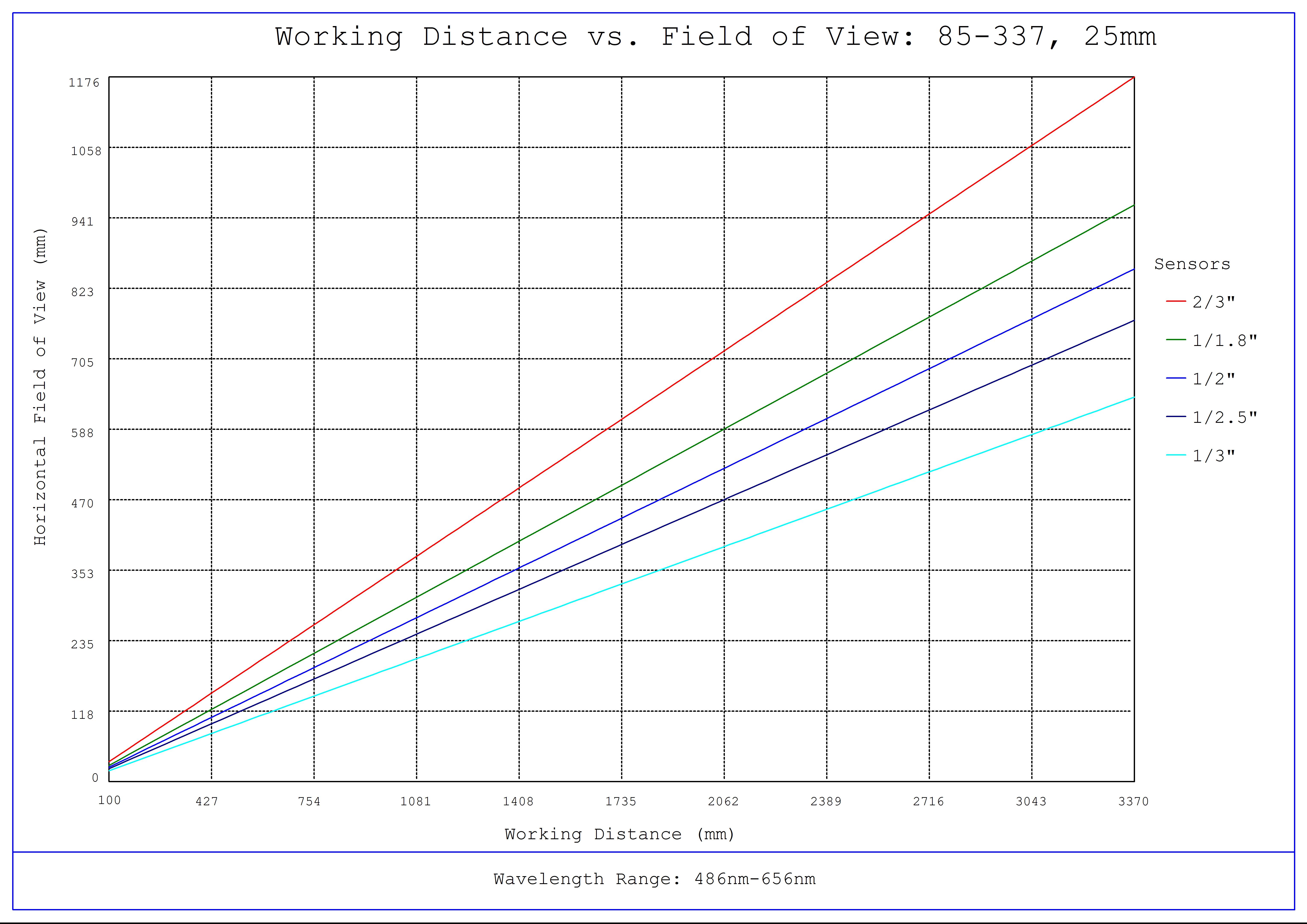

Horizontales Bildfeld @ max. Sensorformat:
35mm - 19.8°
Blende (f/#):
f/16
Arbeitsabstand (mm):
100 - ∞
Beschichtung:
425 - 675nm BBAR
Durch-
messer (mm):
26.5
Horizontales Bildfeld, 1/1,8“ Sensor:
28.5mm - 16.1°
Horizontales Bildfeld, 1/2“ Sensor:
25.4mm - 14.5°
Horizontales Bildfeld, 1/2,5“ Sensor:
22.6mm - 12.9°
Horizontales Bildfeld, 1/3“ Sensor:
19mm - 10.9°
Horizontales Bildfeld, 1/4“ Sensor:
14.2mm - 8.2°
Horizontales Bildfeld, 2/3“ Sensor:
35mm - 19.8°
Filtergewinde:
M25.5 x 0.5 with required adapter #89-941
Frontgewinde:
M22.0 x 0.75 (Male)
Länge (mm):
29.90
Gewinde:
C-Mount
Anzahl Elemente (Gruppen):
7 (6)
Art:
VIS
Blende-Option:
Fixed
Typ:
Fixed Focal Length Lens
Gewicht (g):
28
Front Diameter (mm):
22

Konformität mit Standards

RoHS 2015:
REACH 201:

Produktbeschreibung

These compact lenses are designed specifically for volume integration into applications such as analytical medical devices, including benchtop-based blood analyzers. For customized f/# versions to best suit your instrumentation application needs and to discuss volume requirements, please contact us.

Technische Informationen

Dimensions
Focal Length A B C D
6mm M34.0 x 0.5 47.8mm 34mm 1.17mm
12mm M22.0 x 0.75 29.0mm 22mm 0.96mm
16mm M22.0 x 0.75 40.8mm 22mm 1.09mm
25mm M22.0 x 0.75 29.9mm 22mm 1.33mm
35mm M25.5 x 0.5 41mm 22.5mm 3.82mm
50mm M30.5 x 0.5 49.5mm 30.5mm 2.06mm

Angebot erwünscht? Bitte geben Sie eine Artikelnummer ein.
