Edmund Optics Preferred Glass Types
- Over 65 optical glass types kept on hand at manufacturing sites
- Reduces lead time of raw material and facilitates quick prototyping
- Used for first articles, prototypes, and low volume orders

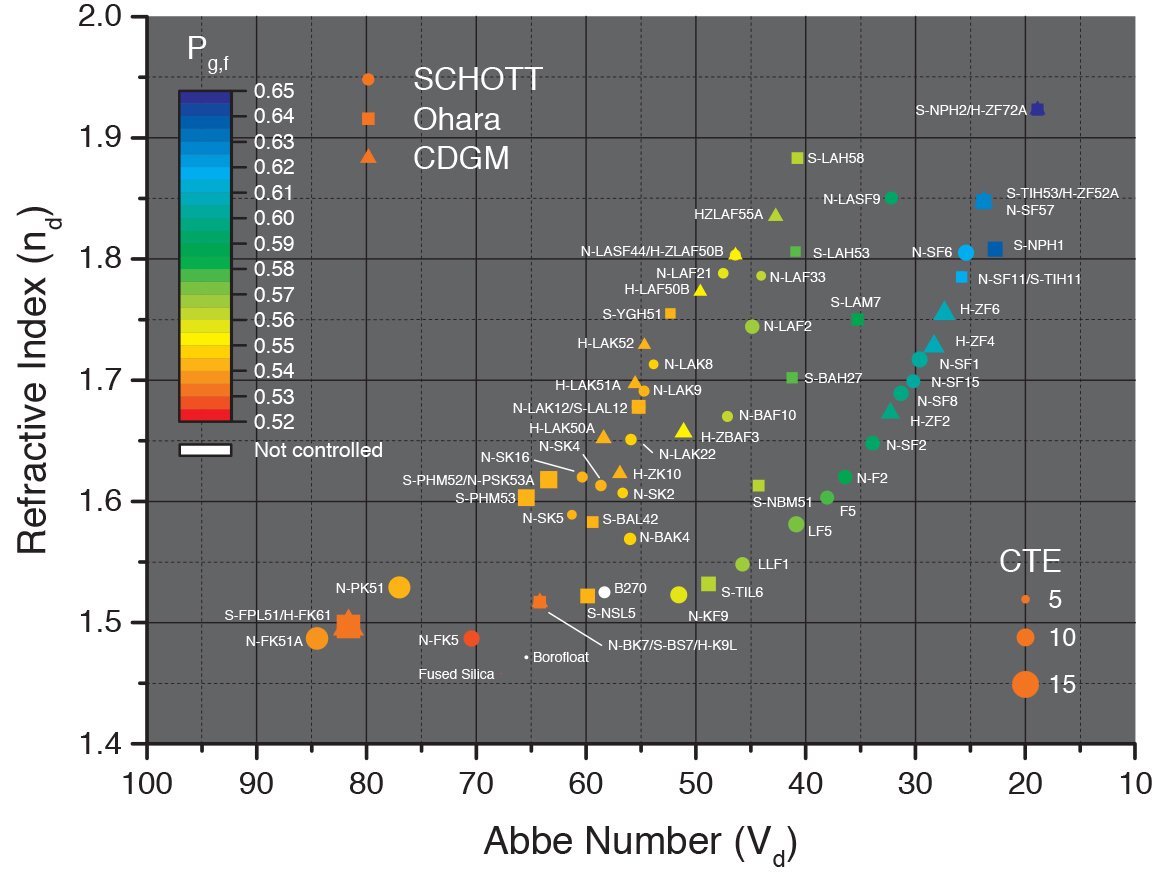

Figure 1: Edmund Optics Abbe diagram with Coefficient of Thermal Expansion and Relative Partial Dispersion
Edmund Optics Global Manufacturing Glass Types Map
Edmund Optics® Global Manufacturing Glass Types | ||||
Materials Available | Glass Code | Equivalent Materials | ||
Ohara | SCHOTT | CDGM | ||
FUSED SILICA | 458678 | - | - | JGS2 |
BOROFLOAT33 | 471654 | - | BOROFLOAT33 | - |
S-FSL5 and N-FK5 |
487702 |
S-FSL5 - |
N-FK5 N-FK51A |
H-QK3L - |
S-FPL51 and H-FK61 | 497816 | S-FPL51 | N-PK52A | H-FK61 |
N-BK7, S-BSL7, and H-K9L | 517642 | S-BSL7 | N-BK7 | H-K9L |
Soda Lime | 520877 | - | - | - |
S-NSL5 | 522597 | S-NSL5 | N-K5 | H-K50 |
N-KF9 | 523515 | NSL51 | - | H-K51A |
B270 | 523585 | - | B270 | - |
N-PK51 | 529770 | - | N-PK51 | - |
S-TIL6 | 532489 | S-TIL6 | - | H-QF6 |
LLF1 | 548458 | S-TIL1 | LLF1 | H-QF1 |
N-BAK4 | 569561 | S-BAL14 | N-BAK4 | H-BaK47 |
LF5 | 581407 | PBL25 | LF5 | QF50 |
S-BAL42 | 583594 | S-BAL42 | SK12 | H-ZK2 |
N-SK5 | 589612 | S-BAL35 | N-SK5 | H-ZK3 |
F5 | 603380 | PBM5 | F5 | F1 |
N-SK2 | 607568 | S-BSM2 | N-SK2 | H-ZK50 |
S-NBM51 | 613443 | S-NBM51 | - | H-TF3L |
N-SK4 | 613587 | S-BSM4 | N-SK4 | H-ZK6 |
N-F2 | 618363 | S-TIM2 | N-F2 | H-F4 |
S-PHM52 and N-PSK53A |
618634 | S-PHM52 | N-PSK53A | H-ZPK1 |
N-SK16 | 620603 | S-BSM16 | N-SK16 | H-ZK9A |
H-ZK10L | 623569 | S-BSM10 | N-SK10 | H-ZK10L |
N-SF2 | 648338 | PBM22 | SF2 | ZF1 |
N-LAK22 | 651560 | S-LAL54 | N-LAK22 | H-LaK10 |
H-LAK50A | 652584 | S-LAL7 | N-LAK7 | H-LaK50A |
H-ZBAF3 | 657511 | - | - | H-ZBAF3 |
N-BAF10 | 670473 | S-BAH10 | N-BAF10 | H-ZBaF52 |
H-ZF2 | 673321 | S-TIM25 | N-SF5 | H-ZF2 |
N-LAK12 and S-LAL12 |
678552 | S-LAL12 | N-LAK12 | H-LaK5A |
N-SF8 | 689311 | S-TIM28 | N-SF8 | H-ZF10 |
N-LAK9 | 691548 | S-LAL9 | N-LAK9 | H-LAK2 |
H-LAK51A | 697555 | S-LAL14 | N-LAK14 | H-LaK51A |
N-SF15 | 699302 | S-TIM35 | N-SF15 | H-ZF11 |
S-BAH27 | 702412 | S-BAH27 | - | H-ZBaF20 |
N-LAK8 | 713539 | S-LAL8 | N-LAK8 | H-LAK7 |
N-SF1 | 717295 | S-TIH1 | N-SF1 | ZF3 |
H-ZF4 | 728283 | S-TIH10 | N-SF10 | H-ZF4 |
H-LAK52 | 729547 | S-LAL18 | N-LAK34 | H-LaK52 |
N-LAF2 | 744448 | S-LAM2 | N-LAF2 | H-LAF3 |
S-LAM7 | 750352 | S-LAM47 | N-LAF7 | H-LaF4 |
H-ZF6 | 755275 | S-TIH4 | N-SF4 | H-ZF6 |
S-YGH51 | 755523 | S-YGH51 | N-LAK33A | H-LaK53A |
H-LAF50B | 773496 | S-LAH66 | N-LAF34 | H-LaF50B |
S-TIH11 | 785257 | S-TIH11 | - | H-ZF13 |
N-SF11 | 785258 | PBH11 | SF11 | ZF13 |
N-LAF33 | 786442 | S-LAH51 | N-LAF33 | - |
N-LAF21 | 788474 | S-LAH64 | N-LAF21 | H-LaF10L |
N-LASF44 | 804465 | S-LAH65 | N-LASF44 | H-ZLaF50B |
H-ZLAF50D | 804466 | S-LAH65 | N-LASF44 | H-ZLAF50D |
N-SF6 | 805254 | S-TIH6 |
N-SF6 |
H-ZF7LA |
S-LAH53 | 806409 | S-LAH53 | N-LASF43 | H-ZLaF52 |
S-NPH1 | 808228 |
S-NPH1 |
- | H-ZF71 |
H-ZLAF55A | 835427 | S-LAH55 | N-LASF41 | H-ZLaF55A |
N-SF57, S-TIH53, and H-ZF52A | 847238 | S-TIH53 | N-SF57 | H-ZF52A |
N-LASF9 | 850322 | S-LAH71 | N-LASF9 | H-ZLaF71 |
S-LAH58 | 881408 | S-LAH58 | N-LASF31A | H-ZLaF68 |
S-NPH2 and H-ZF72A | 923189 | S-NPH2 | - | H-ZF72A |
*Not all grades of every glass type are kept on hand at manufacturing sites
